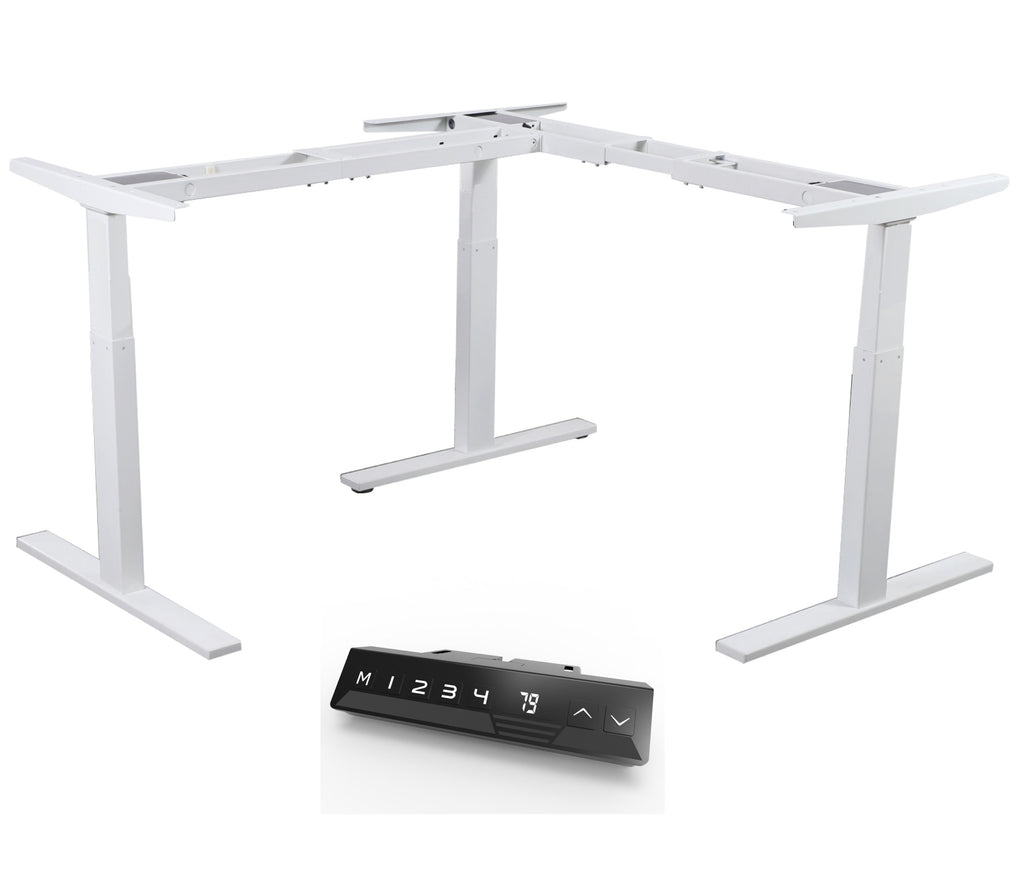

Infinity 2 Stage Leg, 3 Motor, 150kg lifting weight, 4 Memory (Frame only)

Specifications:   CATALOGUE

    • Heavy duty steel construction ensuring increased stability.
    • Expandable framework

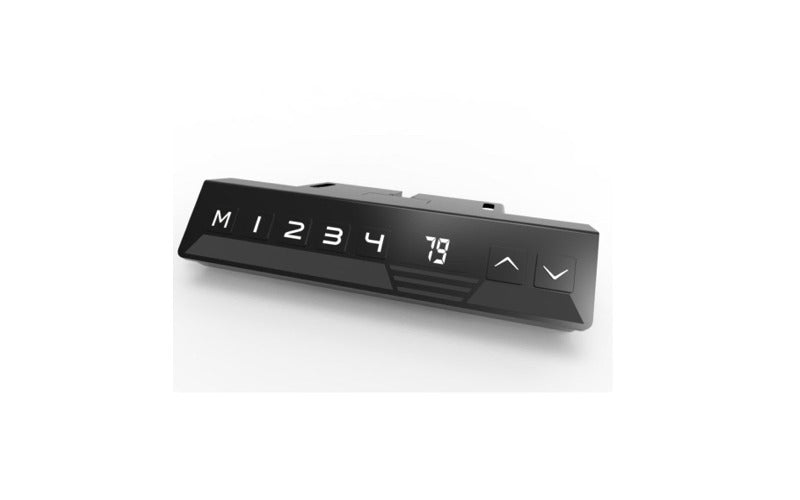

    • 4 stage memory storage height adjustment using a push button
    • Auto stop function if the desk encounters a obstacle on the way down.
    • Push button activation
    • 3 motor drive assembly
    • Dynamic load push: 600N each leg
    • Maximum lift capacity is 120kg
    • Speed at full load: 35mm/S
    • Lowest position: 700mm (Not including top)
    • Highest position: 1,200mm
    • Minimum extension length: 1,000mm
    • Minimum depth of the desktop recommended is 600mm
    • Base (Foot) length: 700mm (600mm option, Indent Only)

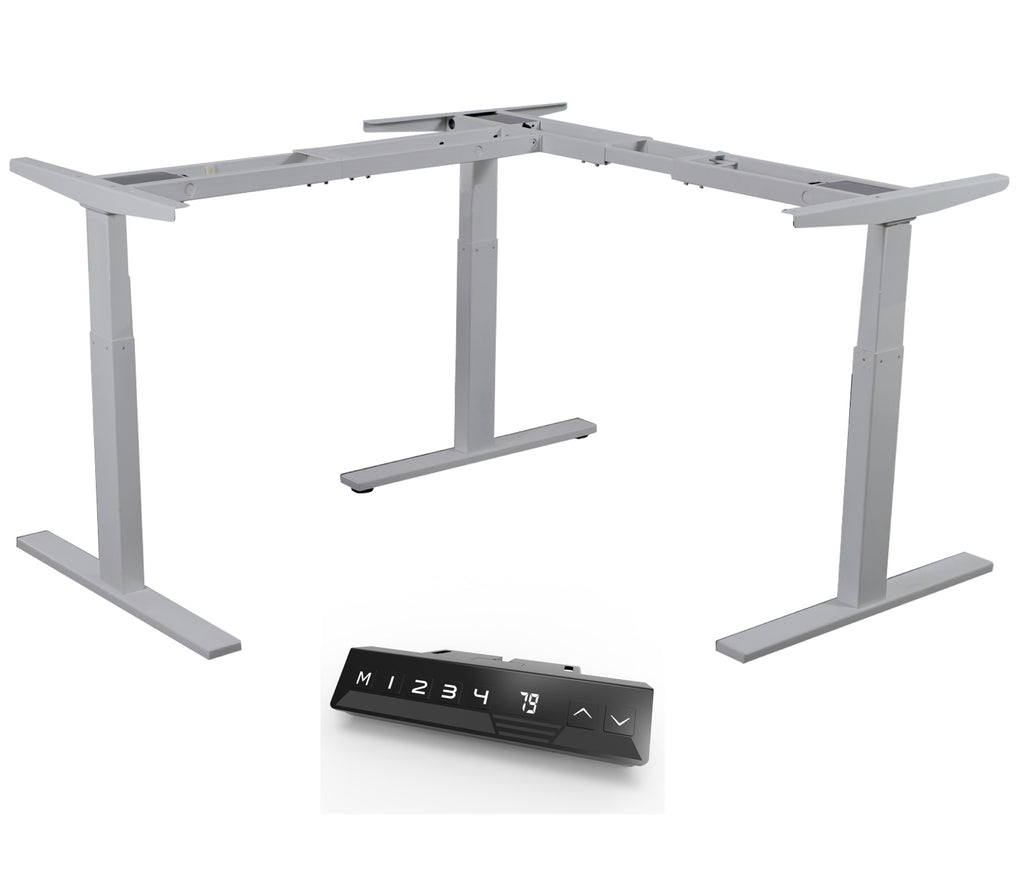

    • Available as standard in White , with Black and Grey optional
    • Sizes = 2,100mm, 1,800mm, 1,500mm, 1,200mm x 800mm (Or any size between.  Minimum depth of the desktop recommended is 600mm)
    • All adjustments for the height are infinitely locking
    • 25mm thick table top is a suggested thickness
    • Solid steel frame construction with a powder coated finish
    • Some assembly required
    • Electrical Approval No. AZ 69020747

    Box size:  = 1040 x 255 x 215  (0.057m3)  Weight =  29kg

    Click logo



      All electrical components          Table frame
