Infinity 2 Stage Leg, 4 Motor, 120kg lifting weight each desk, 4 Memory Back to Back (Frame only, includes cable 2 trays)
$0.00
Specifications: CATALOGUE
- Heavy duty steel construction ensuring increased stability.
- Expandable framework

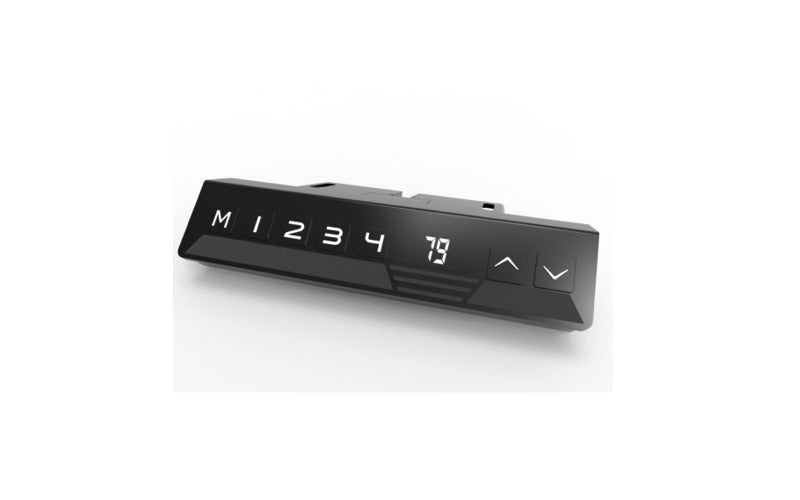

- 4 stage memory storage height adjustment using a push button
- Auto stop function if the desk encounters a obstacle on the way down.
- Push button activation
- 4 motor drive assembly
- Dynamic load push: 600N each leg
- Maximum lift capacity is 120kg each desk
- Speed at full load: 35mm/S
- Lowest position: 700mm (Not including top)
- Highest position: 1,200mm
- Minimum extension length: 1,000mm
- Minimum depth of the desktop recommended is 600mm
- Base (Foot) length: 700mm (600mm option, Indent Only)

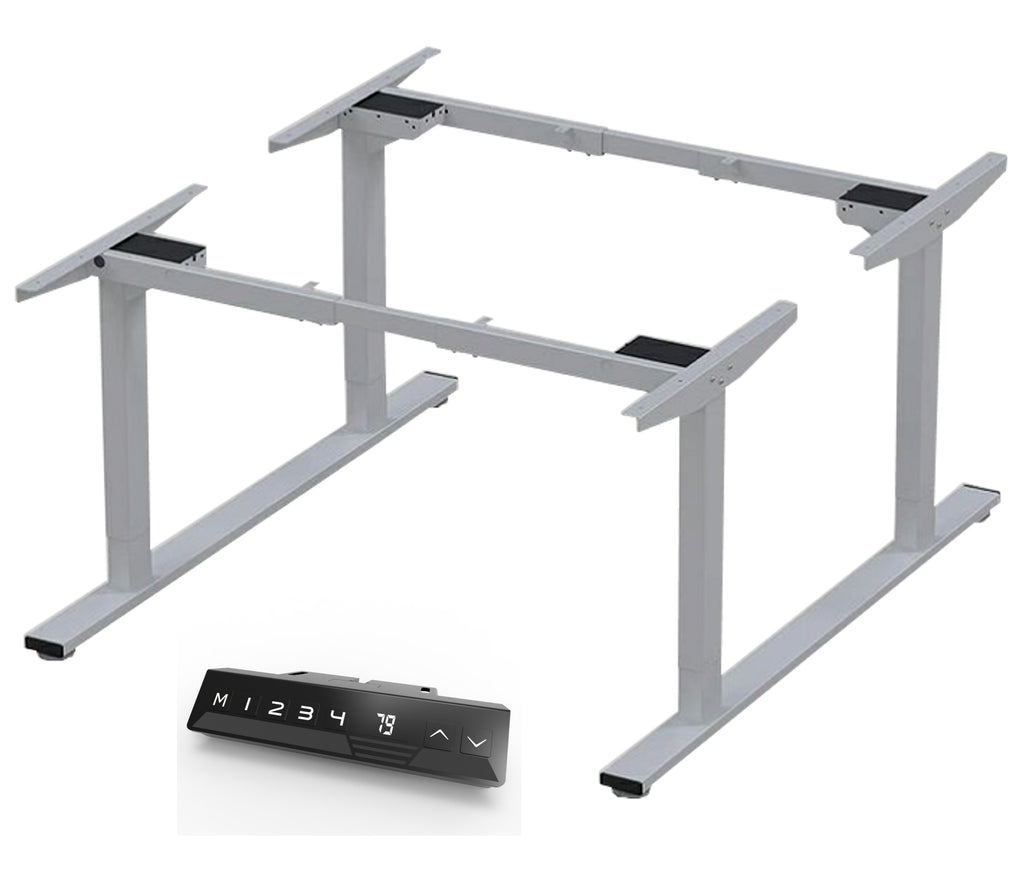

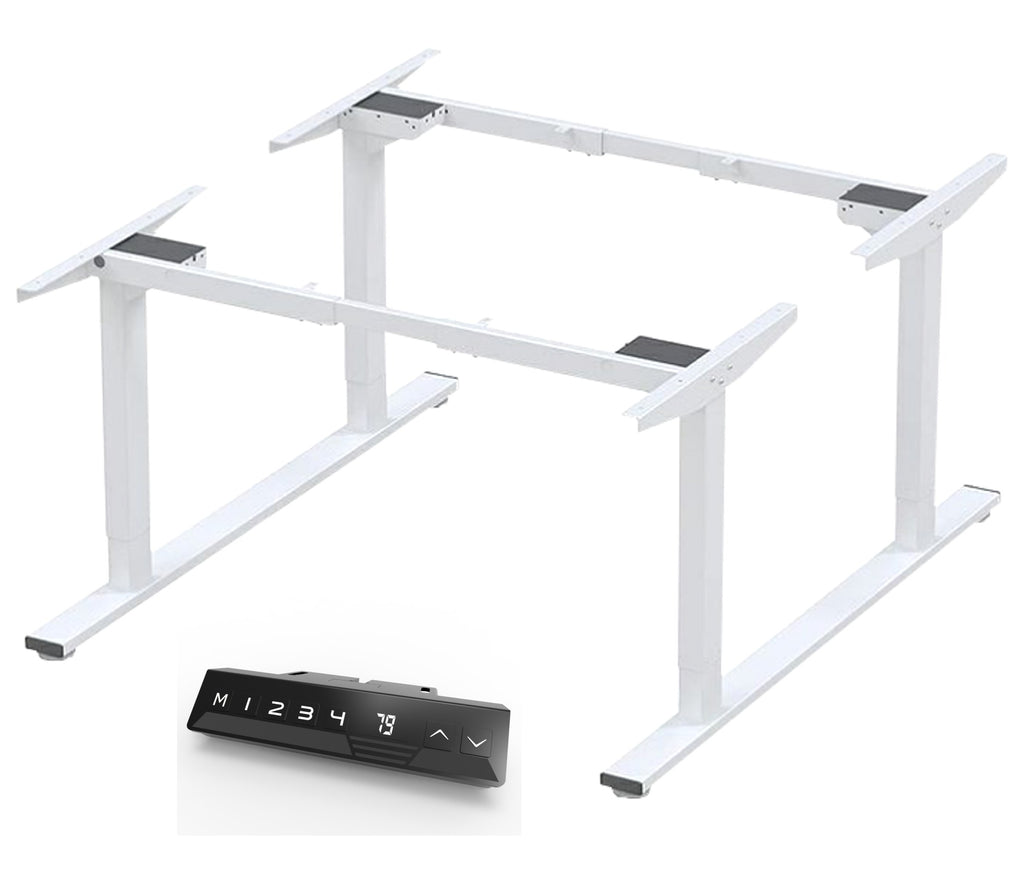

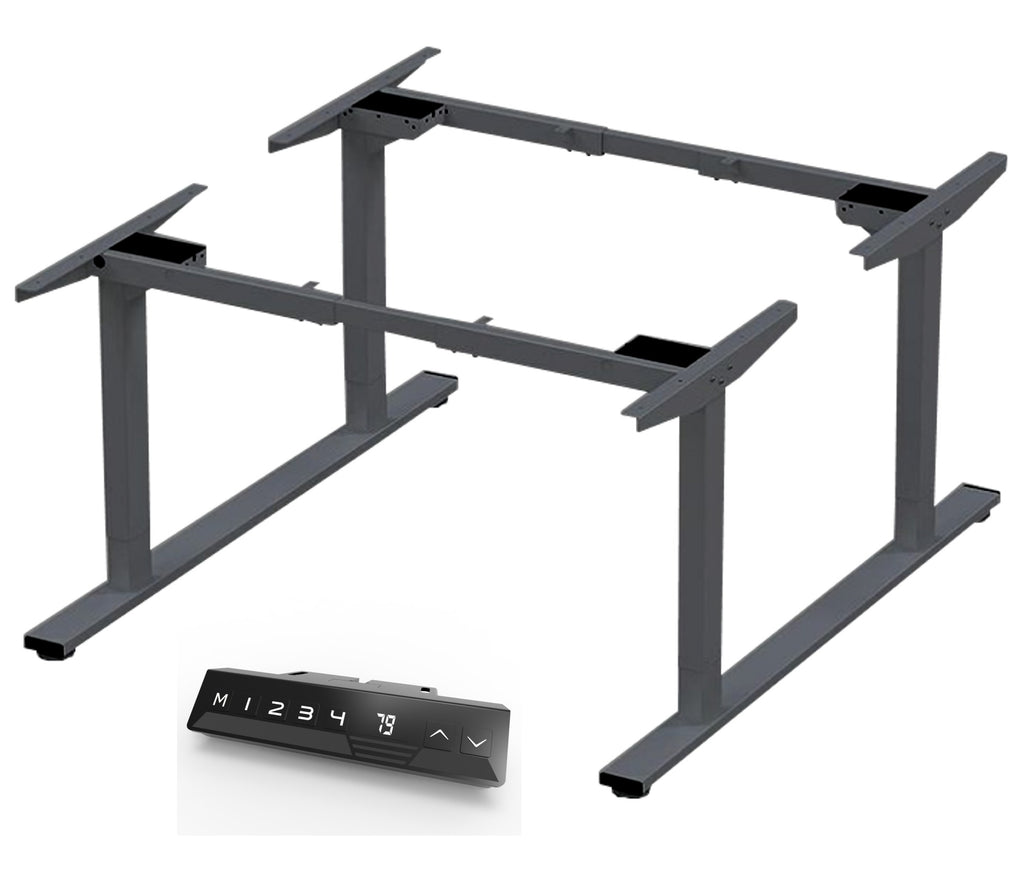

- Available as standard in White , with Black and Grey optional
- Sizes = 2,100mm, 1,800mm, 1,500mm, 1,200mm x 800mm (Or any size between. Minimum depth of the desktop recommended is 600mm)
- All adjustments for the height are infinitely locking
- 25mm thick table top is a suggested thickness
- Solid steel frame construction with a powder coated finish
- Some assembly required
- Electrical Approval No. AZ 69020747
Box size: = 2 @ 1050 x 265 x 205 = 0.06m3
= 1 @ 1440 x 95 x 100 = 0.14m3
Total Weight = 49 kg Total Cubic = 0.26m3
